Details

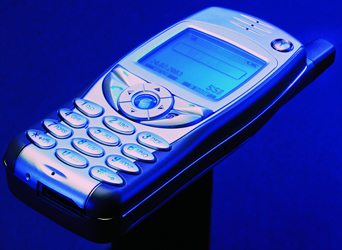

Sec-Tel GSM900/1800 handset with smart card, ear set, travel charger, li-ion battery, user manual, crypto manual.
SPECIFICATIONS/FEATURES
Works on all GSM
mobile communication networks.
Operates as a secure voice communication phone to other
Sec-Tel units
Operates as a standard GSM phone
Inconspicuous design
Slim dimensions (
x 46 x 23mm)
Lightweight (
grams)
Exclusive communication groups using White list on the mobile
phone menu
Specific exclusions using Black lists on mobile phone menu (eg
stolen/lost handsets)
Closed/Corporate User group capability
Ease of use lends itself to all types of users
Batteries – 600mAh, 800mAh, 950 mAh
Sim Lock
Call logging and Caller-ID deactivation
System can be verified by customer or other independent body
Long standby time – approximately 240 hours
Long talk time – minimum 2 hours, even for secure calls
Short charging time
hours
Large full graphic LCD (
x 79 dots) with blue backlighting for clear operation
Integrated personal handsfree port for both unsecure and secure
calls
Support SIM tool kit phase
Software configurable for multiple language services – include
English, German and traditional Chinese
Circuit Data/Fax 2.4k/4.8k/9.6kbps
SMS point-to-point messaging with Tegic T9 predicitive text
entry
Vibrator alert for discrete call alerting
3 programmable Profiles
Real time clock with battery backup
Large 300 Multi-Entry Extended phone book size in phone memory
Alarm clocks
Full call logging with date and time
Games, calculator, memo pad
Multiple ring options including selection for secure calls
SEC-TEL ENCRYPTION FEATURES
The technology is based around two internal tamper-proof
SmartCards. One delivers standard GSM services, whilst the other,
issued by a globally recognised Trust Centre, delivers powerful authentication
and encryption using established and open protocols. This is
known as the Crypto-Sim or Netkey card. These two technologies are
merged to create a unique, unbreakable cipher key for each and every call –
providing failsafe point-to-point authentication and unbreachable privacy from
one handset to another.
The Encryption-system employed is a hybrid mechanism, widely
used in high security products. The Sec-Tel phone
achieves full bi-directional authentication with the secret keys held securely
in, and never leaving, the safe environment of the Netkey card
A new IDEA or AES session key is randomly generated to start the
voice encryption process on the telephone before any speech is
transmitted. Sec-Tel devices negotiate the session key and type of
algorithm during connection set-up as part of transmission-path
authentication. At the end of the call, the session key is securely
discarded and not used again – all power is removed from the crypto module to
ensure that all data in respect of the call is destroyed.
Fully integrated HW module based on Intel Strong Arm Processor
and DVSI advanced speech Vocodor for superior speech quality.
Well established Open protocol Encryption Standards employed,
RSA, IDEA, AES, SHA-
User Authentication by asymmetric RSA
x 509 v3 certificates (in keycard)
Keycard issued by the Security Division of Deutsche Telecom
(Telesec)
Certificates and all encryption software blocks signed by
Deutsche Telecom Trust centre
Digital Signatures according to strict German Digital Signature
Act SigG
State-of-the-art audio codec for encrypted calls
(excellent speech quality)
ITSEC: Security evaluation criteria for IT systems
Transmission path authentication in compliance with Deutsche
Telecom’s patent
Local management following authentication (Blacklist, Whitelist)
Keycard certified to ITSEC Evaluation Level E4,
mechanical strength HIGH
Encryption module ITSEC Evaluation Level E3 (pending)
Encryption : Symmetrically, IDEA,
bits or AES 256 bits
Local management via RS232 port and supplied PC software
Short authentication time
Negligible speech delay during encrypted calls
Encryption calls as simple as making standard GSM vice alls
During secure calls, NO transmission of plain speech possible
(not even by chance or operator error)
Compatible with Sec-Tel’s LineSec for making secure calls
to ISDN landlines
True random number generator implemented in Hardware
